CURT 16190 A30 5th Wheel Hitch, 30,000 lbs

The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 30K 5th wheel hitch. Like our other A-series hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A30 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 30K 5th wheel mounts to any industry-standard 5th wheel rails, using the included 5th wheel legs. Once installed, the A30 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A30 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish. We also test the A30 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

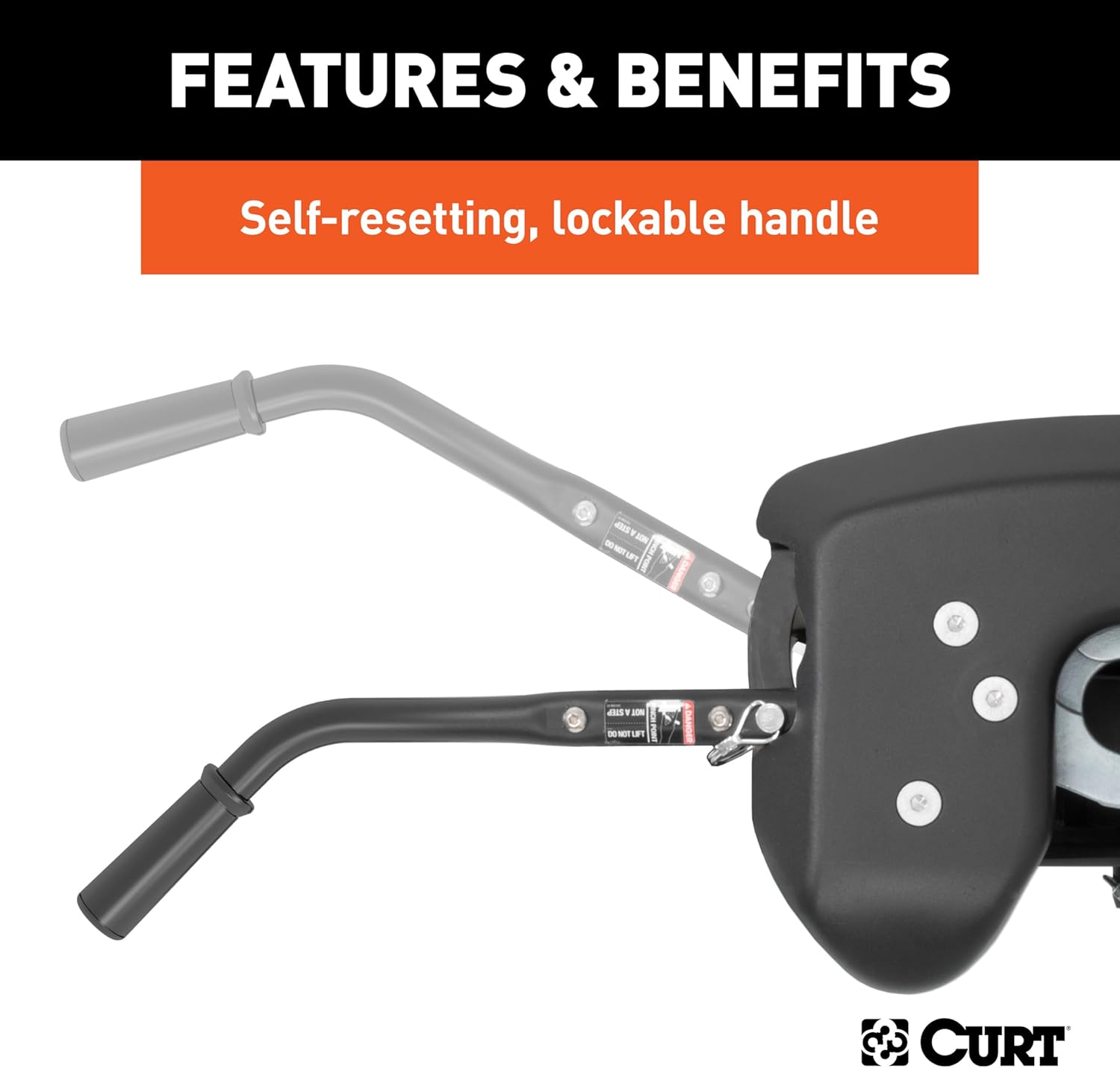

• SELF-RESETTING. This A-series 5th wheel hitch features a unique, ergonomic handle and extra-wide head to make coupling your 5th wheel trailer easier than ever. After uncoupling, the handle self-resets to the ready-to-couple position

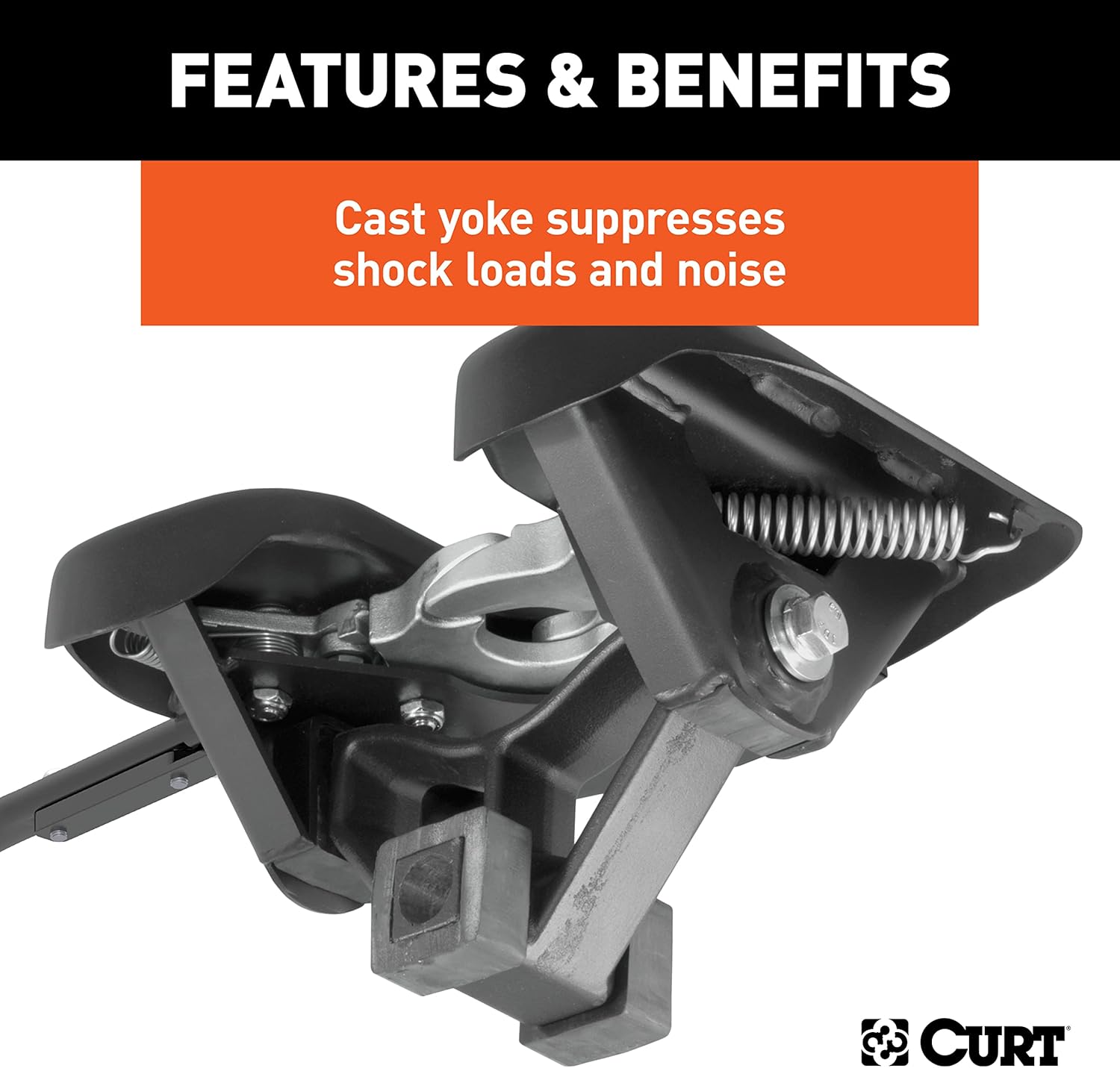

• FULL ARTICULATION. This 5th wheel hitch provides controlled towing of your 5th wheel camper with its patented head technology. The head is built on a cast yoke with poly-torsion inserts that reduce shock loads, chucking and noise at the coupling point
• COUPLING INDICATOR. Built into this 5th wheel hitch is a 3-position indicator that shows the coupling status. It conveniently shows if the 5th wheel hitch is coupled, uncoupled or ready to tow
• TESTED STRENGTH. This 5th wheel hitch is tested and rated for 30,000 lbs. gross trailer weight and 7,000 lbs. vertical load (limited to lowest-rated towing component). It is tested according to SAE J2638 specifications

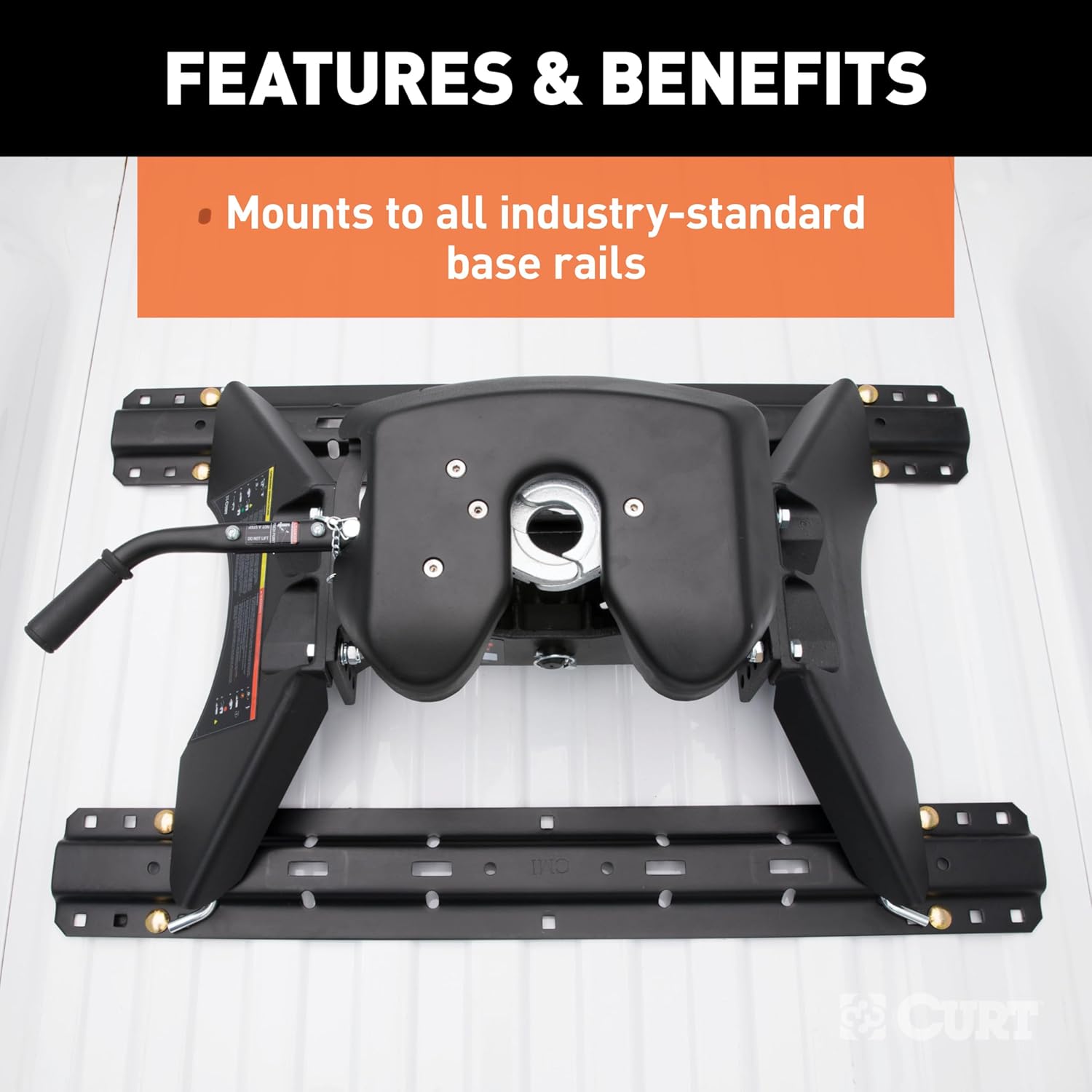

• VERSATILE FIT. This 5th wheel hitch comes with standard legs to easily and securely mount onto any industry-standard 5th wheel base rails, such as CURT base rails #16104 and #16204 (base rails and brackets sold separately)
