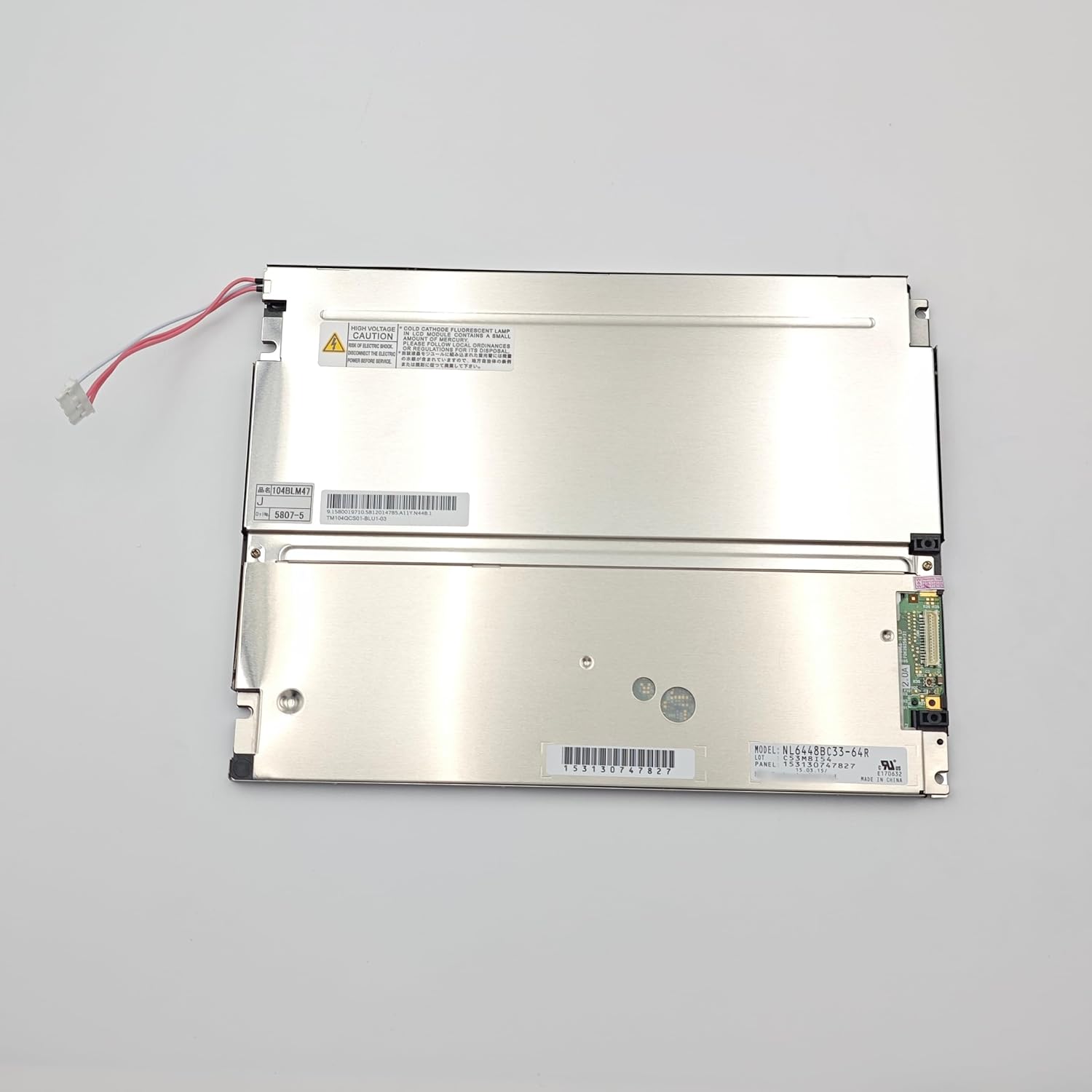

NL6448BC33-64R 10.4 Inch LCD Display 640x480 VGA High Brightness 450 cd/m² Industrial Screen for Industrial Equipment Replacement
4.1 (56 items)
Limited Time Sale$159.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 247580360 | Release Date | 2026/08/16 | List Price | $106.00 | Model Number | 247580360 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Overview This 10.4-inch diagonal a-Si TFT-LCD display module is designed for industrial equipment, legacy system replacements, medical devices, and commercial applications requiring high brightness, fast response, and reliable operation in demanding environments. Display Specifications - Resolution: 640 x RGB x 480 (VGA, 4:3 aspect ratio) - Active Area: 211.2mm (H) x 158.4mm (V) - Outline Dimensions: 243mm x 185.1mm x 11mm - Panel Weight: 475g (Typ.) / 500g (Max.) Optical Characteristics - Brightness: 450 cd/m² (Typ.) – Excellent for industrial environments - Contrast Ratio: 600:1 (Typ.) - Colors: 262,144 (6-bit per color) - Color Gamut: 40% NTSC - Viewing Angles: 80° Left, 80° Right, 80° Up, 60° Down (CR≥10) - Best View Direction: 6 o'clock - Display Mode: TN, Normally White, Transmissive - Response Time: 6ms (Typ. Rise), 19ms (Typ. Fall) Backlight - Type: 2 pieces CCFL (Cold Cathode Fluorescent Lamp) - LED Driver: Not included (external driver required) - Power Consumption: 6.2W (Typ.) Interface & Power - Signal Interface: CMOS (1 channel, 6-bit), 31-pin connector - Supply Voltage: 3.3V or 5.0V (Typ.) – Dual voltage compatible - Refresh Rate: 60Hz - Touch Screen: Without Surface Treatment - Clear surface with hard coating (3H) for scratch resistance Environmental & Durability - Operating Temperature: -10°C to +70°C - Storage Temperature: -20°C to +80°C - Vibration Resistance: 2.0G (19.6 m/s²) Important Note Please verify your system's connector type, backlight driver requirements, mounting dimensions, and voltage settings before ordering. This display requires an external CCFL backlight driver (not included). Suitable for replacement or new designs in industrial control panels, test instruments, medical monitors, and legacy automation systems.
- HIGH BRIGHTNESS 10.4" TFT-LCD DISPLAY – 450 cd/m² typical brightness ensures clear visibility in well-lit industrial environments. 640(RGB)x480 VGA resolution with 4:3 aspect ratio and RGB vertical stripe pixel layout. Active area 211.2x158.4mm, outline 243x185.1x11mm.
- EXCELLENT IMAGE QUALITY – 600:1 typical contrast ratio (TN, normally white, transmissive mode). Supports 262K colors with 40% NTSC color gamut. Fast response time: 6ms (Tr) and 19ms (Td) typical.
- WIDE VIEWING ANGLE – 80/80/80/60 (Typ.)(CR≥10) viewing angles (L/R/U/D) with best view direction at 6 o'clock. Suitable for most industrial monitoring and control applications.
- DURABLE & RELIABLE – Clear surface with hard coating (3H) resists scratches. Operating temperature range -10°C to +70°C, storage -20°C to +80°C. Vibration resistant up to 2.0G (19.6 m/s²). Weight 475g (Typ.) / 500g (Max.).
- INTERFACE & POWER – CMOS (1 channel, 6-bit) signal input via 31-pin connector. Dual voltage compatible: 3.3V or 5.0V typical. 60Hz refresh rate. Backlight: 2 pieces CCFL (external driver required, not included). Power consumption 6.2W typical.
| ASIN | B0H1J5LKCK |
|---|---|
| Brand | GOOD LNVSHOP |
| Color | 262K, 40% NTSC |
| Model Name | NL6448BC33-64R |
| Resolution | 640×480 |
| Screen Size | 10.4 inches |
| Aspect Ratio | 4:3 |
| Manufacturer | YINXIAN |
| Model Number | NL6448BC33-64R |
| Refresh Rate | 60 hertz |
| Response Time | 25 milliseconds |
| Screen Finish | Outline(mm): 243(W)×185.1(H)×11(D) |
| Additional Features | NL6448BC33-64R |
| Warranty Description | 90 days warranty |
| Item Dimensions D x W x H | 0.4"D x 9.57"W x 7.29"H |
| Display Resolution Maximum | 640×480 pixels |
